Drowsy driving is the dangerous combination of driving and sleepiness or fatigue. Drowsy driving is a major problem in New Zealand. The risk, danger, and often tragic results of drowsy driving are concerning to both drivers, passengers and other road users. The Driver Fatigue Detection GPS Tracker uses the unique pupil identification technology to analyze the eye’s fatigue condition and provide accurate early warning for real fatigue. The system utilises sensors and infrared cameras to repeatedly scan the driver: the eyes for signs of tiredness (blinking); the face and head movements for signs of distraction; and the course steered by the car in its road lane (deviations or steering movements by the driver) or noting if head position changes dramatically.

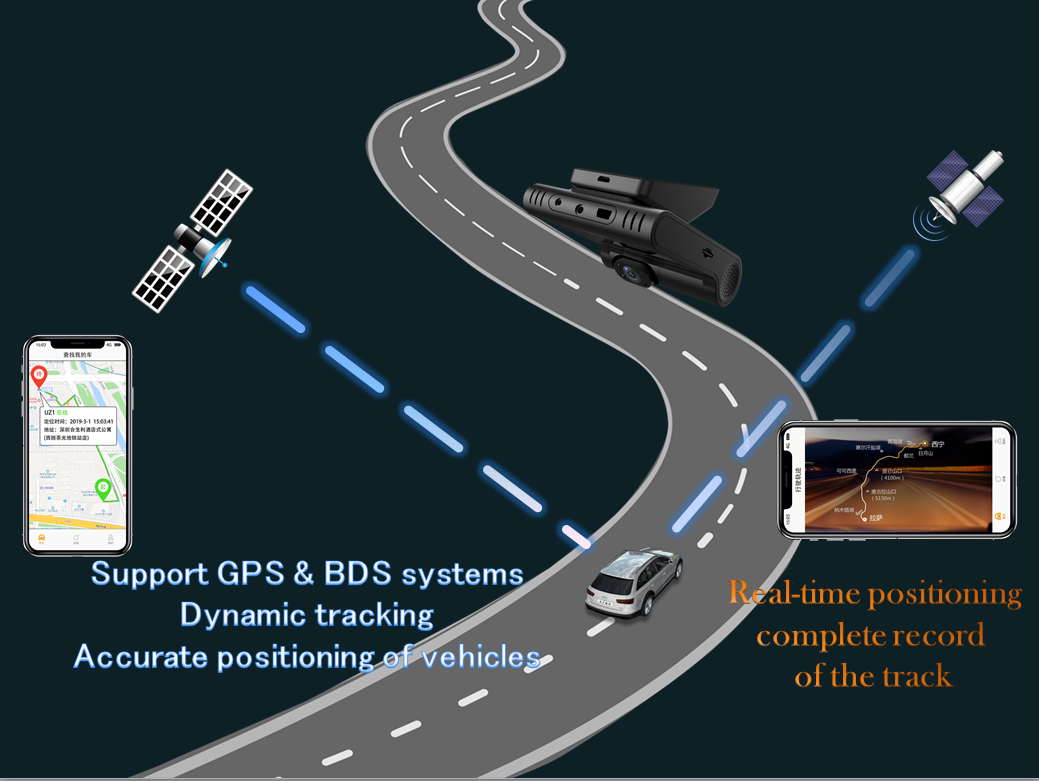

The system has a built-in GPS module, which allows for accurate speed recording, as well as turning alerts off below a desired speed.

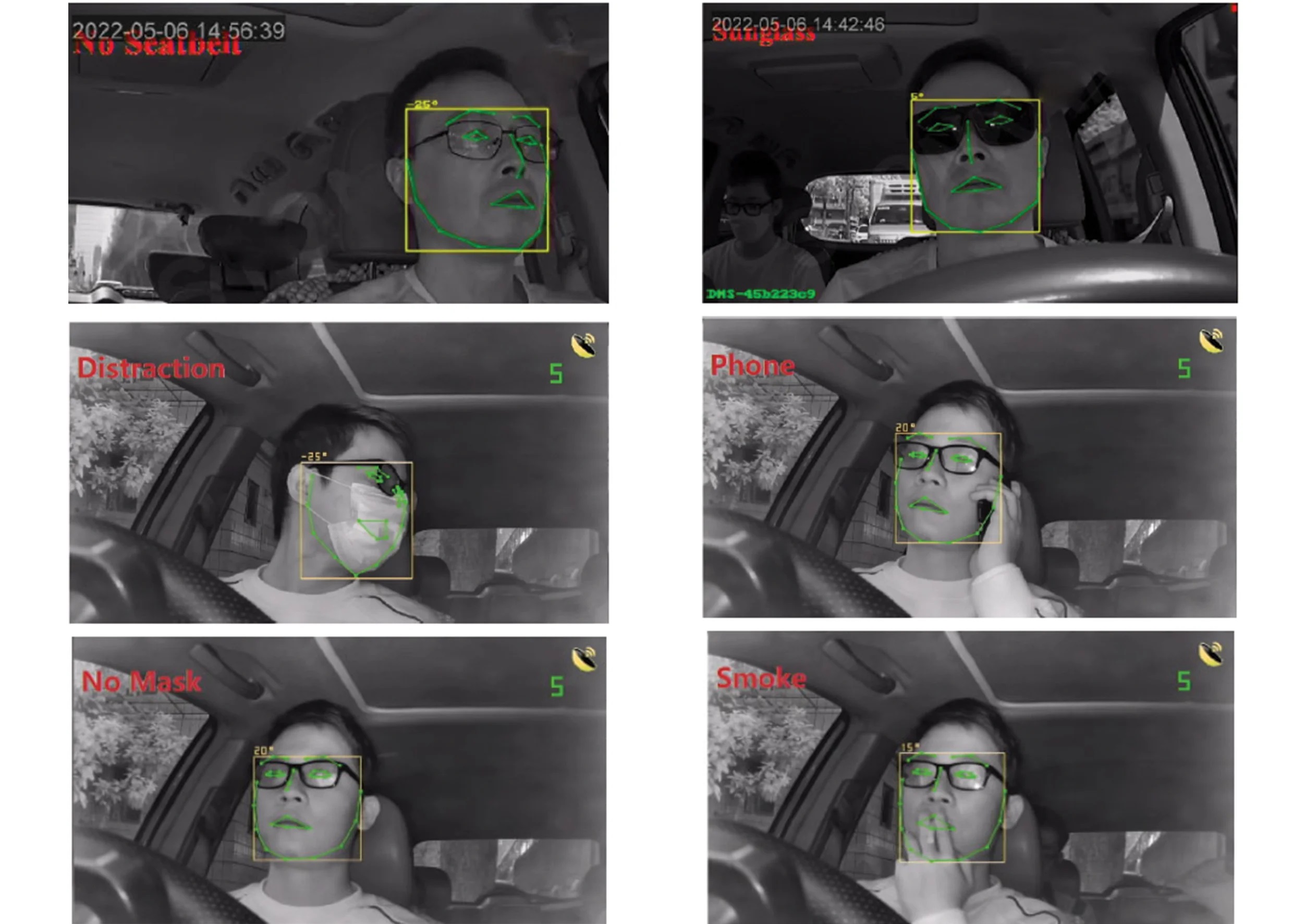

Driver Fatigue Detection GPS Tracker Features
1)Fatigue driving warning
Through facial detection, the DSM detects driver’s eyes are abnormally keeping closed and then warning.
2)Distraction warning
Through facial detection, the DSM detects driver’s head turns around and then warning.
3)Smoking warning
Through gesture detection, the DSM detects driver is smoking and then warning.
4)Calling warning
Through gesture detection, the DSM detects driver’s calling and then warning.
5)Driver abnormal warning
The DSM detects the driver is abnormal (like can’t detect facial features over 3 seconds) and then warning. The warning way is voice warning.
6)Driver ID recognition
When the DSM detects the driver has left the monitor scope and re-appeared, it will compare the present driver characteristics with the previous one. If they are not the same one, then it will warn.
The warnings are divided into different levels according to vehicle speed. The warning way is voice warning.
Specification
Internal storage: 2GBit
Screen:3’’ IPS MIPI 320*640

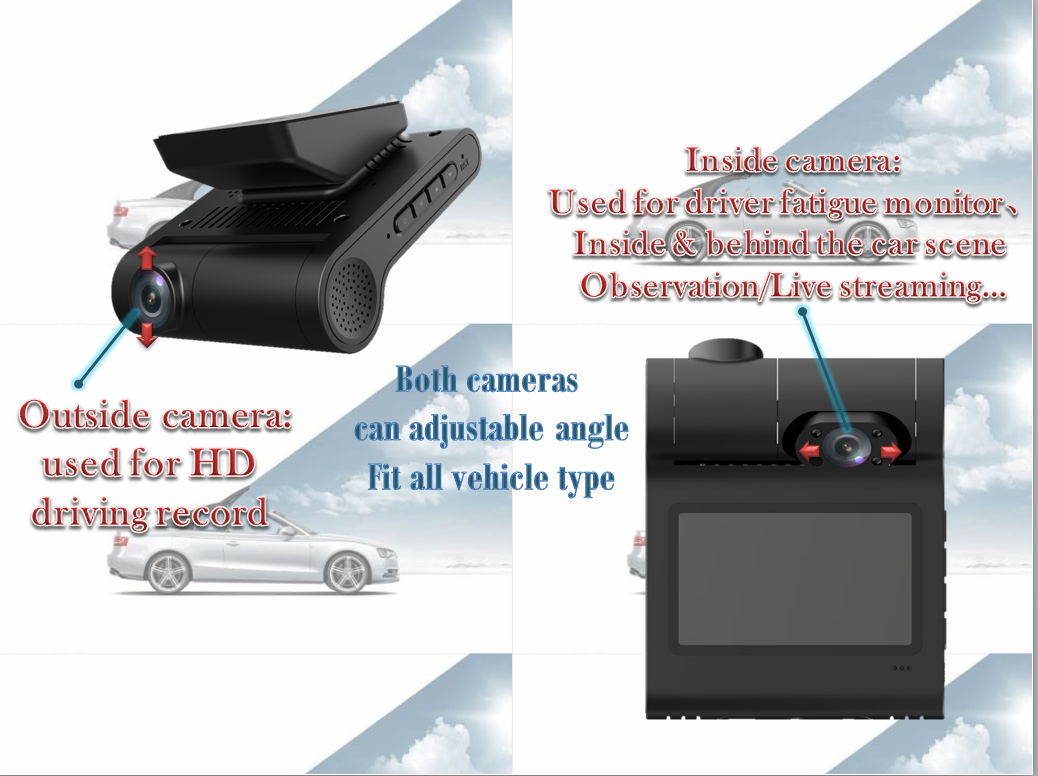

Front camera: JXF22(1080P),MIPI,4 glass,F2.0,140°
Center camera: USB Camera,640X480,4 glass,F2.0,120°
Coding/code rate:H.264 8Mbps
G-sensor:SC7A20
RTC/Battery:Shared lithium battery, 290mA
WIFI:IRRTL8189ES,2.4GWIFI, support AP
GPS: External 2.5mm headphone jack, support AGPS, UART
Audio: 1 output, 8ohm, 0.75W
Microphone:1 output, -40db±3db
Power interface:Mini USB 2.0 Port
TF card: Max support 128GB/C10
Button:4 physical buttons, adaptive based on software features
Working voltage:DC 5V
