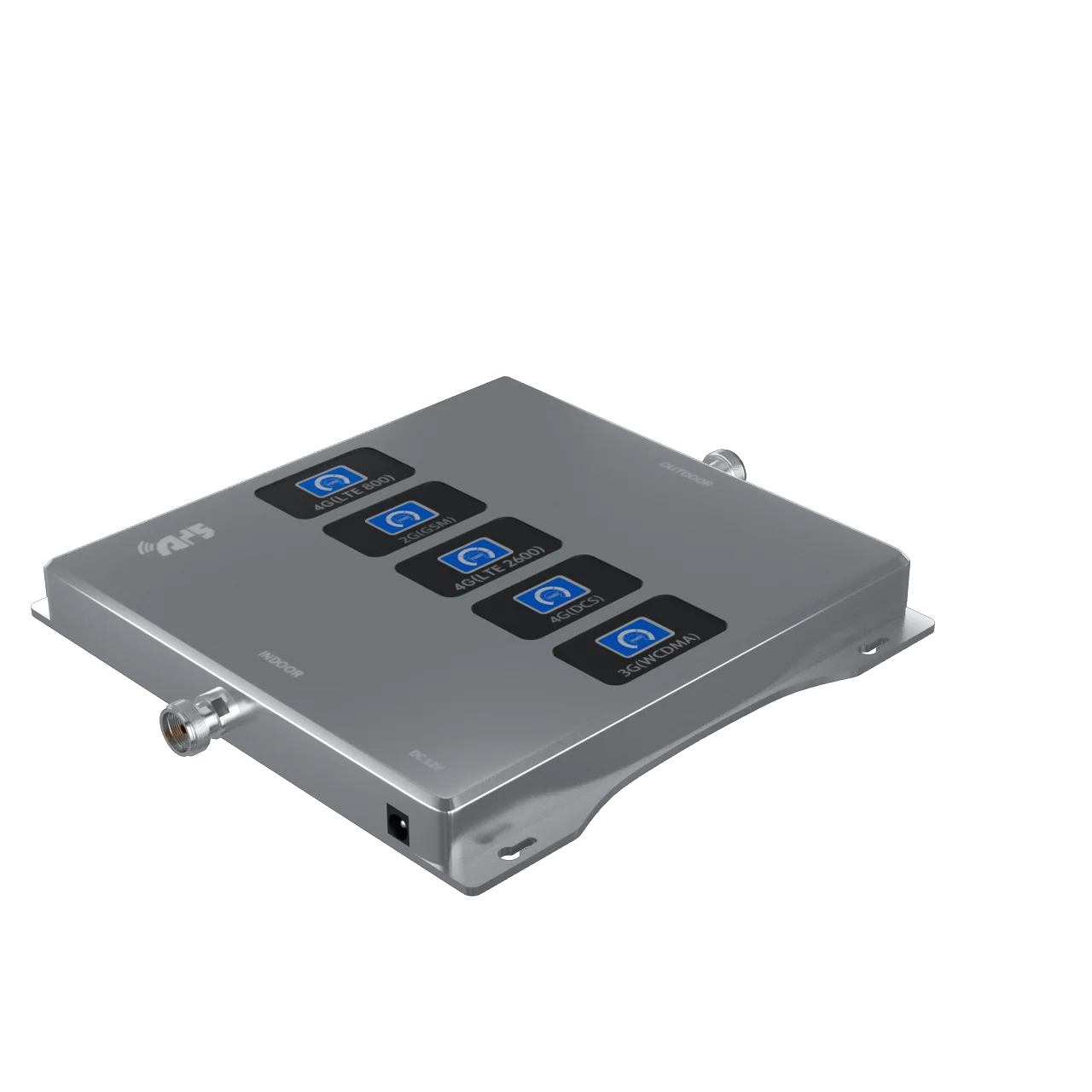

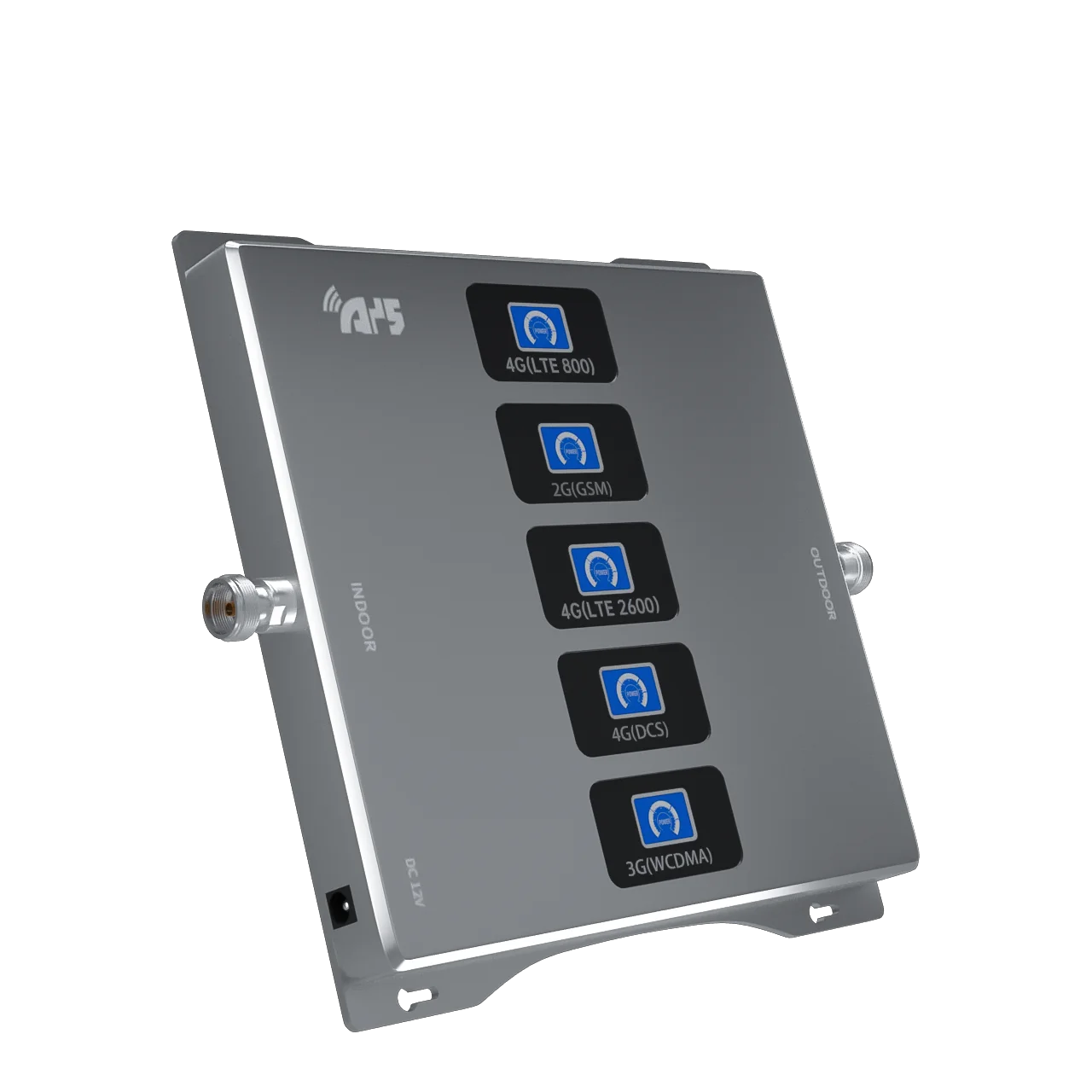

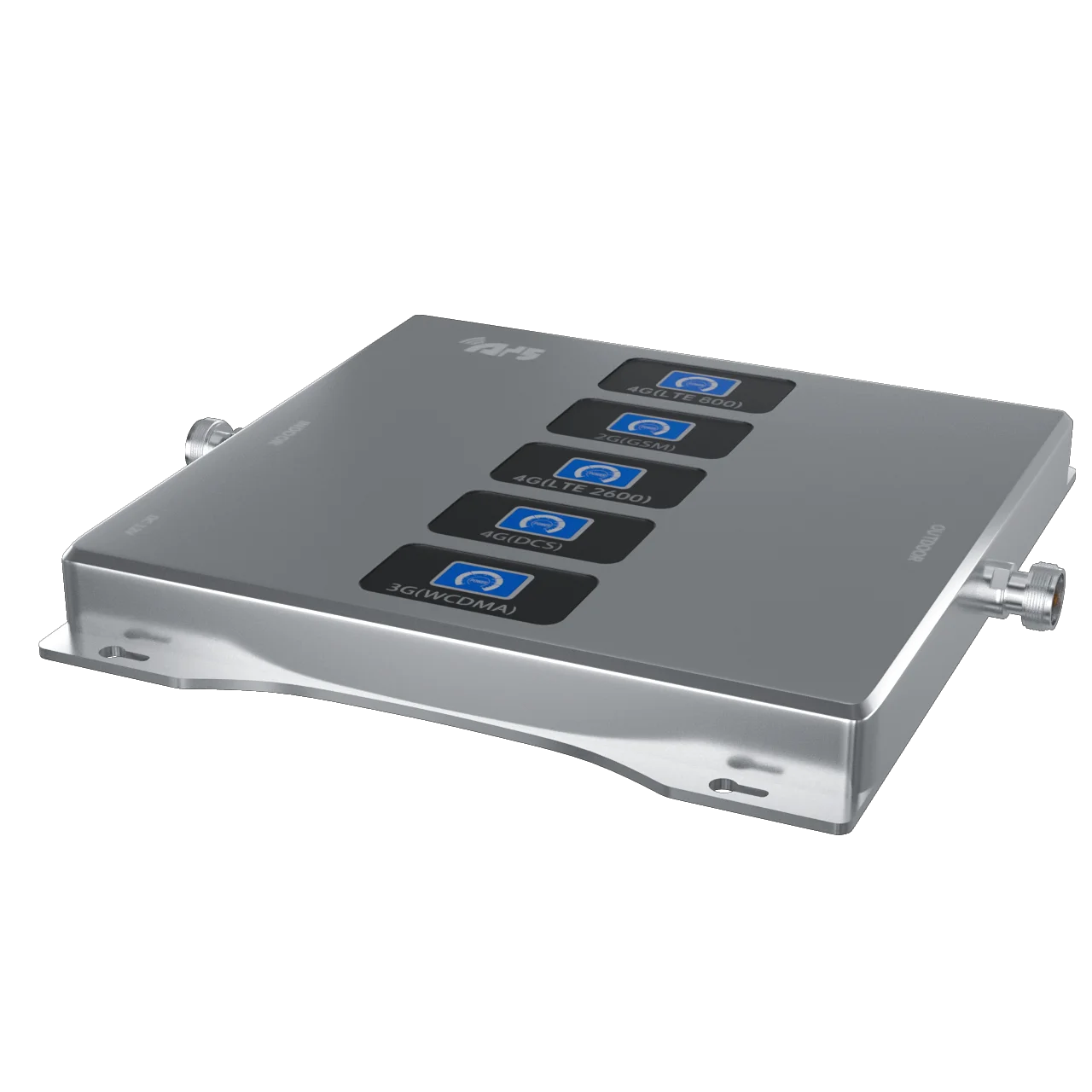

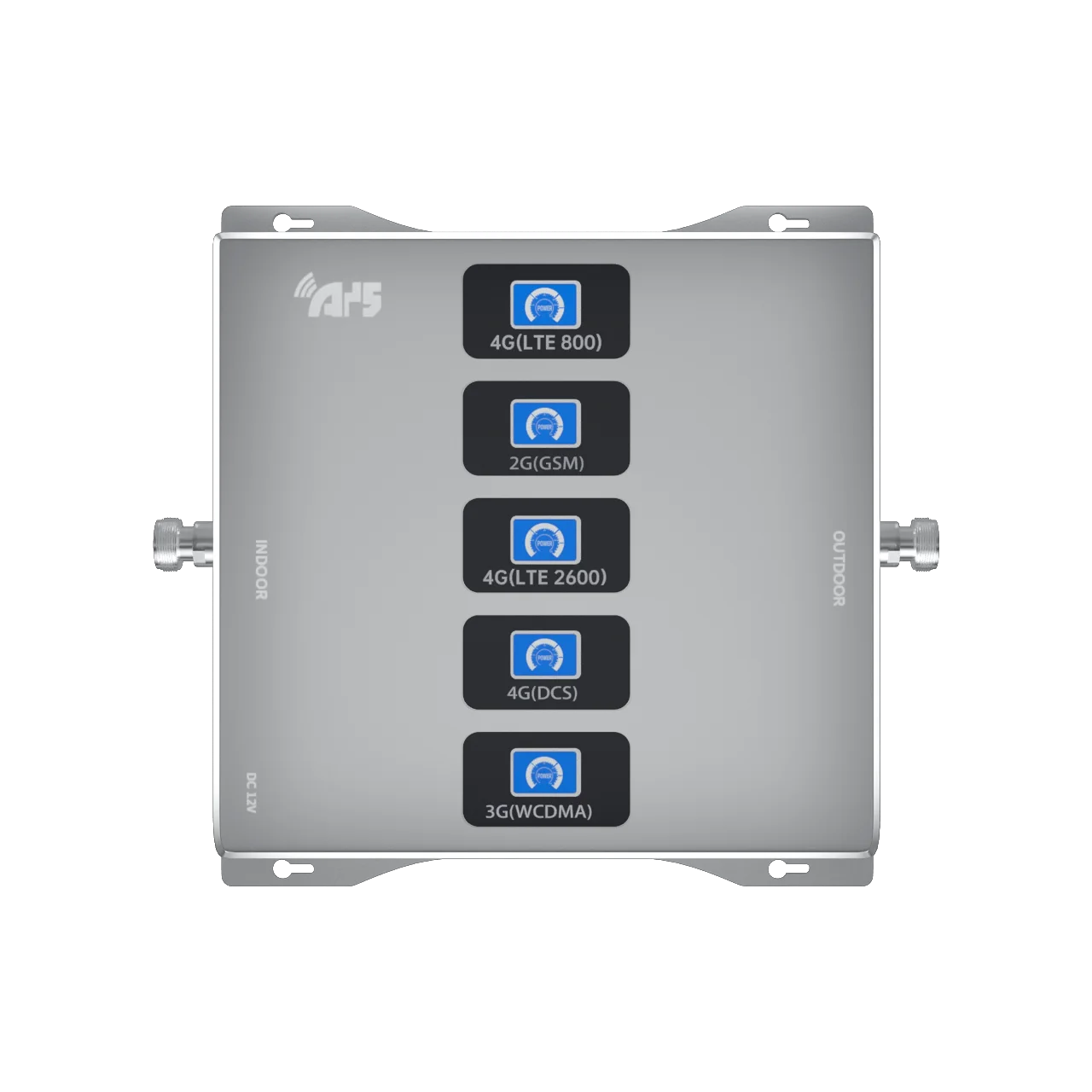

Mobile Signal Booster Repeater

How It Works

How it works:

1). The outdoor antenna receives the mobile signal from signal tower.

2). The booster receives the outside signal from the outside antenna.

3). The booster improve the outside signal and send it to the indoor antenna.

4). The indoor antenna broadcasts the boosted signal to devices inside the home.

Easy 4 steps of installation:

1). Find an appropriate position where there is a stable mobile signal to install the outdoor antenna and toward to the cell signal tower.

2). Connect the outdoor antenna to the signal booster via the cable.

3). Connect the indoor antenna to the signal booster.

4). Check all the connectors is tightened then plug in power. Done!

The signal booster only works if you can install the indoor antenna a certain distance from the outside antenna. This is known as the minimum required separation distance (MRSD). The signal booster has a required MRSD. If it’s not strictly observed, the antennas pick up each other’s signals, creating oscillation. This feedback loop can damage the mobile network, the booster will automatically reduce its gain and you won’t get optimal performance.

Package

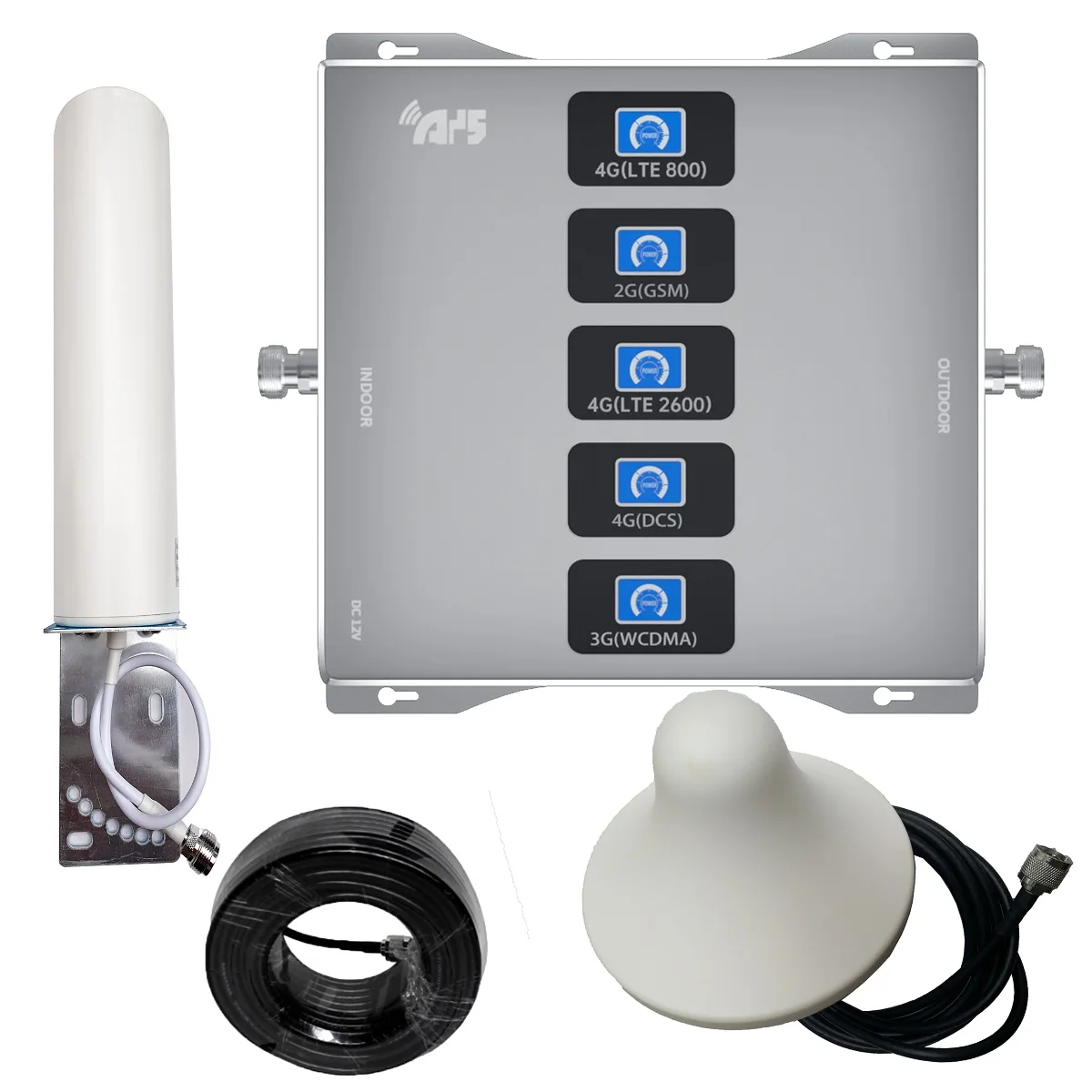

Kit includes:

1x repeater

1x indoor antenna

1x outdoor LPDA antenna

1x power adapter

1x 10 meters cable

1 x 5 meters cable

Specifications

Gain ( dB) Uplink Gp=60, Downlink Gp=65
Export power (Po) =20dBm
Pass band ripple =5dB
Guard band rejection (BW-60dB)=42MHz, (BW-70dB)=45MHz
I/O impedance 50 ohm
I/O return loss =-8dB
Intermodulation Attenuation: =-40dBc (Po=13dBm)
Transmission Delay =0.5μs
Ambient temperature -10~50
Power supply AC110~220V + – 10%
Power 12v
Power Use < 5 Watts
Connector N-female type
Diamension 235 x 178 x 25 mm
